Water Production Line / XGF8 8-3 Washing Filling Capping 3in1 Machine

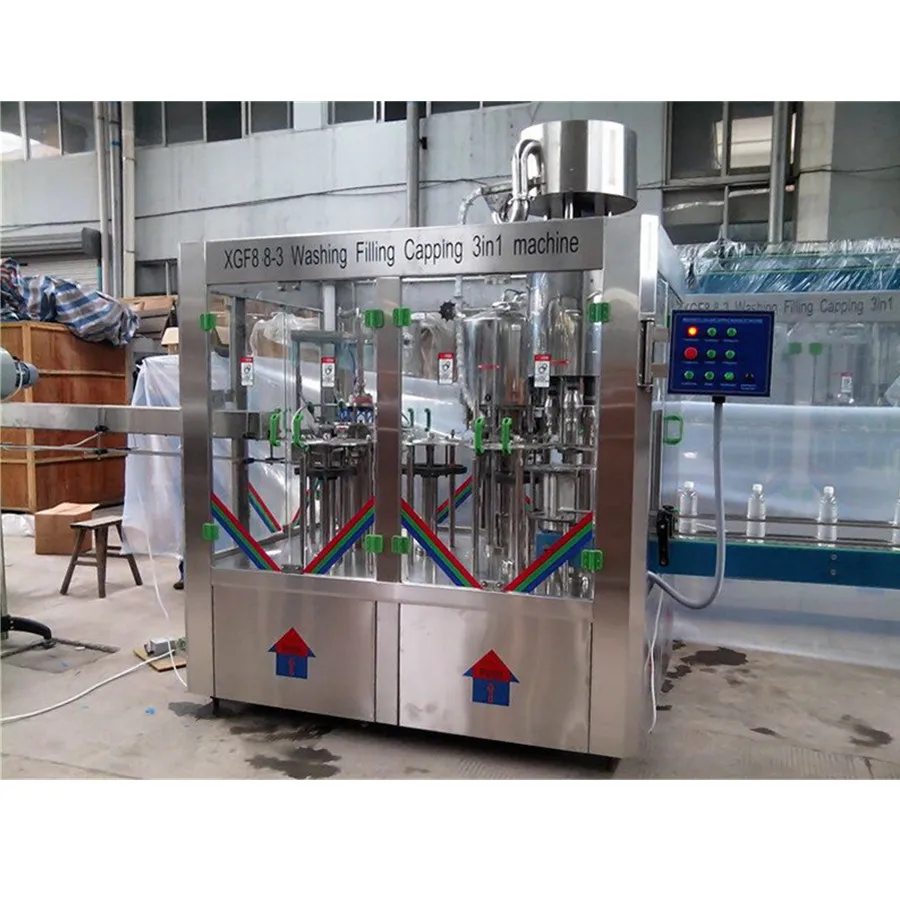

XGF8 8-3 Washing Filling Capping 3in1 Machine
1. XGF8-8-3 Washing/Filling/Cap Monobloc 3-in-1 unit machine
It is applicable for round and abnormity PET mineral water pure water and juice, etc, and normal temperature filling.
1.1 Range of bottle capacity: 200–1500ml
Range of bottle diameter: φ50—φ92mm
Range of bottle height: 140–330mm
Inner diameter of the bottleneck: φ20–φ30mm
1.2 Variety and specification:
X —- Washing Machine
G —- Filling Machine
F —- Capping Machine
XGF 8/8/3
1.3 Equipment composition and introduction of structure
Composition ——(washing) ——(filling)
——(capping) ——(Air driving)
Body machine ——(electric) ——(electric box)
——(working platform) ——(main transmission)
——(Chain box and entering and exiting arc board) ——(frame)
Machine configuration:
|
8-8-3 3 in 1 |
||||
|
configuration |
Power |
model |
Brand |
Note |
|
conveyor |
|
2m |
Youlian machine |
With fan |
|
Wash shelf |
|
8pcs |
Youlian machine |
flowing：1T /hour Water pressure：0.2-0.4Mpa |
|
Stainless Washing Pump |
0.37KW |
1set 1T/Hour |
South China |
|
|
Filling nozzle |
|
8 |
Youlian machine |
|
|
Stainless filling pump |
0.55KW |
1-2T/hour 1pc |
South China |
|
|
Main Motor |
2.2KW |
1 set |
South China |
adjustable |
|
Capping head |
|
3 |
Youlian machine |
Magnetic capping head |
|
Fan |
0.75KW |
1set |
Shanghai,China |
|
|
Caps unscrambler motor |
0.25KW |
1 set |
South China |
|
|
transduce |
|
1pc |
Mitsubishi |
|
|
Electronic parts |
|
1 pc |
Simens |
|
|
Control panel |
|
1 pc |
weinview |
|
Valve quantities of filling: 8 heads
Heads of capping: 3 heads
Heads of washing: 8 heads
Capacity:500ml 3000b/h
1000ml 1500b/h
1250ml 1200b/h
Can suits for your different bottle size, no need change mould if the bottle neck is same.
1.5 Input Power:
Main power: 2.2KW , Washing pump:0.37kw
Filling pump:0.55kw, Cap unscrambler:0.25kw
Air blower: 0.75kw, Conveyor motor: 0.55kw
Working Voltage AC: 380V 50HZ, 3 phase
1.6 Water Consumption: (aseptic water) ≈ 1m3/h
Water Pressure:0.2-0.4 Mpa
1.7 Dimensions: LxWxH 2000x1500x2200mm
Weight of equipments ≈1800Kg
