Specifications & details
- DESCRIPTION

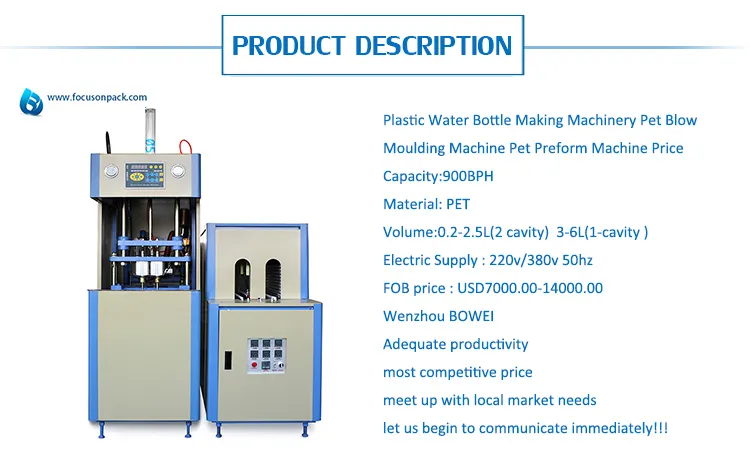

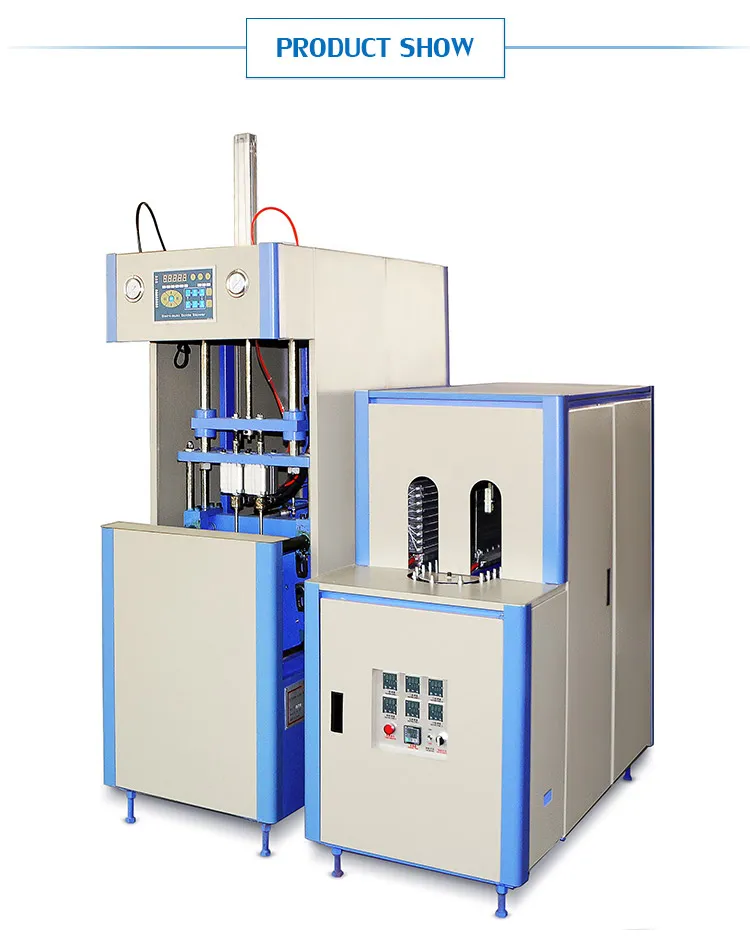

Hz-880 Semi Auto Pet Blowing Machine PE Blow Moulding Machine
| TECHNICAL DATA | ||
| ITEM | MEASURE-MENT | SBM-880 |
| Material | / | PET/PP |
| Volume | L | 0.05-2.0(2-cav)3-5(1-cav) |
| Theoritical output | Pcs/h | 700-1000 |
| Max.length | MM | 360 |
| Max.diameter | MM | 180 |
| Max.mould plate dimension(l*h) | MM | 420*500 |
| Clamping force | KN | 180 |
| Power | KW | 12 |
| Voltage/Frequency | V/HZ | 220~380/50~60 |
| Machine dimension(l*w*h) | M | 1.66*0.74*2.2 |
| Machine weight | Kg | 700 |
| Pre-heater dimension(l*w*h) | M | 1.46*0.71*1.58 |
| Pre-heater weight | Kg | 300 |

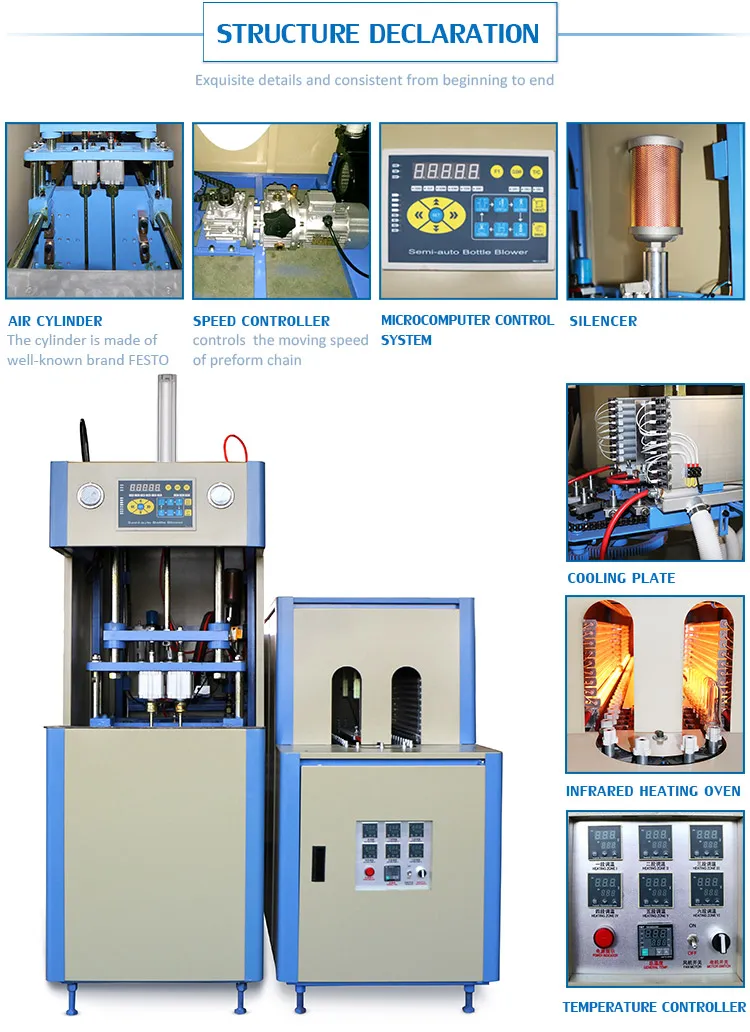

| MAIN PARTS BRAND | |||
| ITEM | Name of the main spare parts | BRAND NAME | COUNTRY |
| 1. | Closing cylinder | FESTO | GERMAN |
| 2. | Sealing cylinder | FESTO | GERMAN |
| 3. | Stretching cylinder | FESTO | GERMAN |
| 4. | Closing magnetic valve | FESTO | GERMAN |
| 5. | Stretching magnetic valve | FESTO | GERMAN |
| 6. | Blowing magnetic valve | FESTO | GERMAN |
| 7. | Moving magnetic valve | SIEMENS | GERMAN |
| 8. | Voltage regulator | CHINA | |
| 9. | Computer controller | BOTHFIT | TAIWAN JOINT |
| 10. | Infrared lamp | CHINA | |
| 11. | Open circuit controller(32) | DELEX | CHINA |
| 12. | Heat continue controller | DELEX | CHINA |
| APPLICATION |
| This system is ideal for start-up and small-scale companies and is reliable, heavy duty, and capable of producing a wide variety of high quality P.E.T. bottles for many industries like water, alcohol, juice, liquid detergent, vegetable oil, cosmetics, pharmaceutical and personal care items which are just a few examples. |
| FEATURES | |
| 1 | Original FESTO air cylinder. |
| 2 | Minimize your initial investment by starting small. |
| 3 | Add additional systems economically as your business grows. |
| 4 | Bottles of different sizes can be produced simultaneously to meet your exact requirements. |
| 5 | Change over from one size to another can be completed simply and quickly. |
| 6 | The tooling costs (molds) are low since the design of the system is simple. |
| 7 | Systems can be dedicated to produce particular bottle sizes. A short operator-training period due to the simplicity of the design. |
| 8 | Maintenance costs are kept to a minimum and highly-trained personnel are not required |
| HOW IT WORKS | |
| 1. | The Blow Molding system does not require highly trained operators to produce consistent quality bottles. |
| 2. | The bottle making process starts by loading preforms into the preheater. |
| 3. | The preheater uses a variable speed track that moves the preforms through a heating tunnel. The heat tunnel has specially designed heating elements for a consistent heating operation with minimal maintenance. |
| 4. | When the preforms have made one “trip” through the preheater, they are manually loaded two(three or four) at a time into the blow molder. |
| 5. | After the bottles are formed in the blowing cycle, they are removed and the cycle continues. The finished bottles are then loaded directly onto a conveyor for filling or can be stored for later use. |
| FAQ | |
| 1 | What is the terms of payment ? |
| We accept L/C ,40% dawn payment balance pay before shipment by T/T | |
| 2 | What is your delivery time? |
| Normally we will delivery the goods in 15-30 working days . | |
| 3 | Warranty time ? |
| One year. | |
| 4 | How you ship the machine? |
| We will send by sea,as the machine dimension is large we do not suggest you send by air ,but if you need urgently ,send by air we can also do it . | |
| 5 | Any easy broken parts free of charge,when we place order? |
| Yes . | |
- Category
- Water Production Line
- SKU
- Available on request
- Availability
- Please confirm with our team
Hz-880 Double Station Semi Auto Stretch Pet Plastic Blowing Machine Blow Moulding Machine
₦12,000,000 – ₦12,500,000
Market estimate · not a selling price
HZ880 supplier references; compressor, moulds and bottle-size configuration may differ. Supplier references checked 23 October 2026. Final pricing, taxes and delivery require confirmation.
1). This machine is characterized by Low cost, high efficiency and its easy operation and maintenance as well as its stable performance with advanced PLC.
2). Preform self-rotation and infrared preheater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
3). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the preheater, and keep the proper temperature and humidity invariable.
4). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
5). Introduce the FESTO air cylinder to avoid contamination and noise.
6). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
7). Strong clamping force with high pressure and double crank links to lock the mould.
8). Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
9). Ideal cooling system makes the finished bottles without any flaws.
10). Low rejection rate: less than 0.2 percent.
Confirm current pricing and availability with our team.
