Introduction

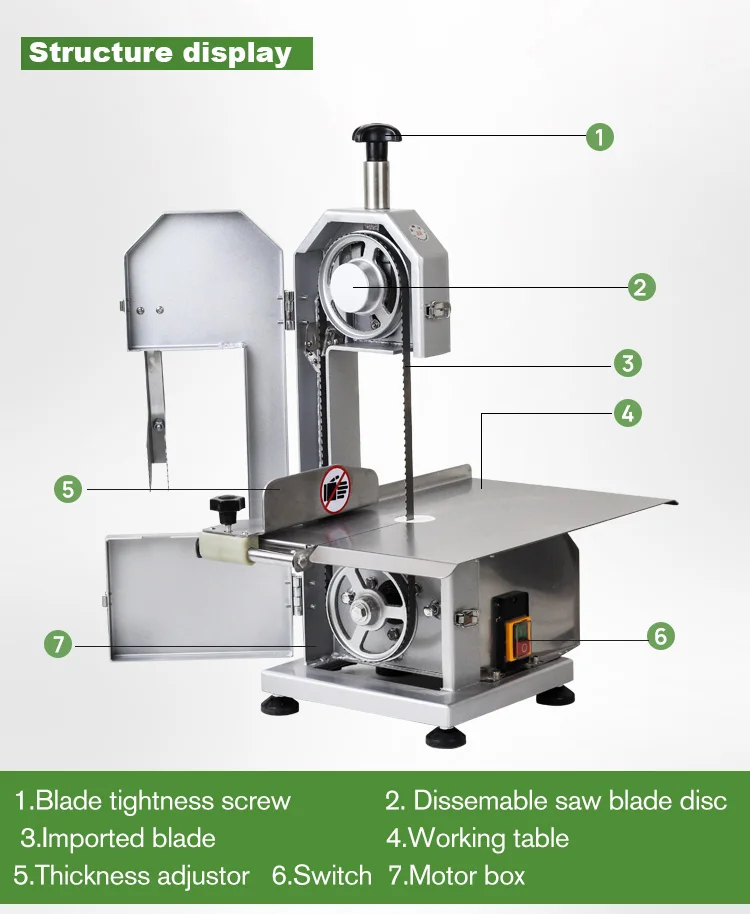

The bone sawing machine is composed of a frame, a motor, a circular saw, a translation table, and an electric control work board. It is suitable for all kinds of small and medium-sized animal bones, frozen meat, fish bones, frozen fish, ice processing, and small pieces of frozen meat. , Cutting of ribs, etc.

Application

Suitable for use in large-scale centralized food processing plants, slaughterhouses, meat processing plants and other places

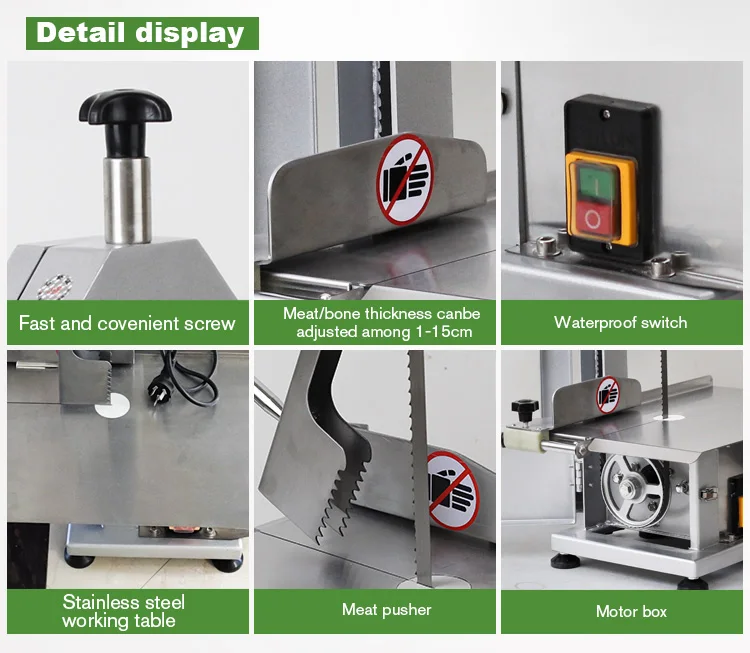

Features

1. Flat body design, stainless steel sealing plate, in line with food hygiene and easy to clean;

2.  Stainless steel door, special surface treatment, easy to clean and maintain;

3. Saw band pressure tensioning device, easy to install and adjust the saw band;

4.  Saw band stabilization device, the saw band is stable and will not move when sawing;

5. Strengthened design of thickness adjustment plate, easy to adjust the processing thickness, will not shake when moving;

4.  Saw band stabilization device, the saw band is stable and will not move when sawing;

5. Strengthened design of thickness adjustment plate, easy to adjust the processing thickness, will not shake when moving;

6.   Equipped with a safety lever design to improve work safety. The machine is waterproof, easy to clean, safe and hygienic;

7.High horsepower, has the advantages of compact structure, beautiful appearance, simple operation, high efficiency, power consumption, easy cleaning and maintenance, and good bone sawing effect.

Paramater

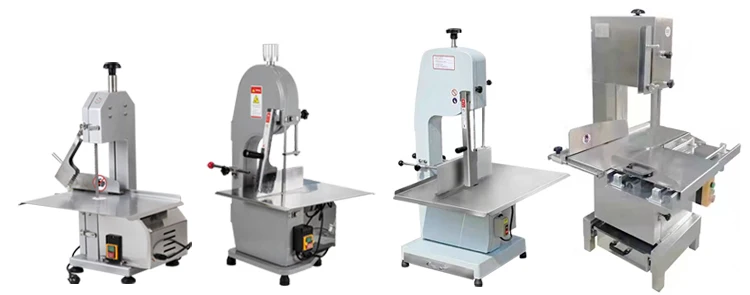

QD-J120	QD-280	QD -310	QD -400

Model	QD-J120	QD-280	QD -310	QD -400
Operating table(cm)	51*35.5cm	49*38cm	68*47cm	90*96cm
Saw moving speed	12m/s	15m/s	20m/s	34m/s
Weight(kg)	34kg	40kg	66kg	220KG
Power	900w	1.5kw	1.5kw	2.2kw
Dimension	50*40*72cm	50*50*89cm	50*40*72cm	50*40*72cm
Voltage	220/110v	220/110v	220/110v	220/110v
Cutting thickness(cm)	0-12	0-18	0-20	0-36
Sawing height(cm)	20	25	30	43.5
Applicable place	Home, small restaurant	Restaurant, supermarket	Supermarket, factory	Meat processing factory
Applicable food	Pork bones, fish,Chicken, frozen meat etc	Beef bone, lamb bone, fish, Chicken, frozen meat etc	Beef bone, lamb bone, Chicken, fish, frozen meat etc	Whole pig and whole sheep, frozen meat, etc
