Specifications & details
PRODUCT APPLICATION
This machine is suitable for mineral water bottle, carbonated beverage bottle, daily chemical bottle, medicine bottle etc less than 2000ml.
Use the advanced touch-screen computer control, easy operation, stable quality and high safety.
The production process is finished by the automatic micro-computerized control, only need one operator.
|

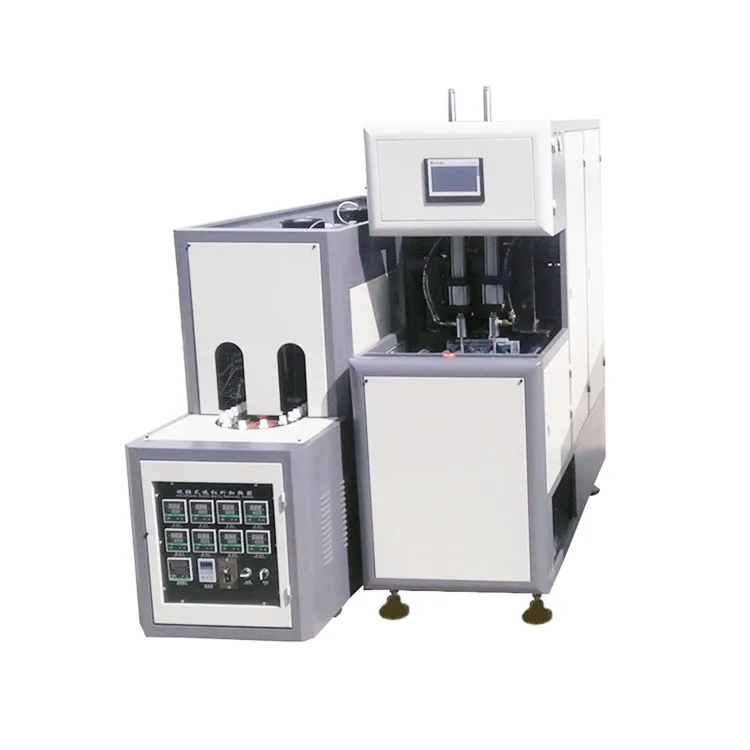

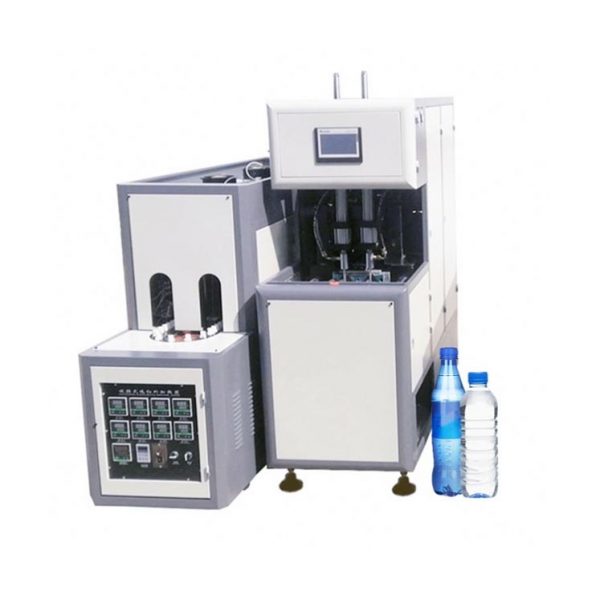

2 Cavity Semi Automatic PET Plastic Bottle Blowing Machine
|
|
|
Bottle Volume:
|
50ml-2L
|
|
Cavity:
|
2 cavities
|
|
Output:
|
800-1000BPH
|
|
Bottle Type:
|
PET bottle
|
|

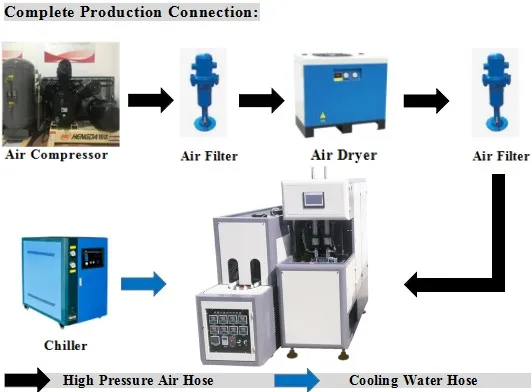

Auxiliary Equipment Needed
|
Air compressor Air filter
Air dryer (optional)
Chiller (optional)
Bottle mold
|
1.Semi automatic running with theoretical output 800-1000BPH for 50ml-2L bottle.
2.Advanced PLC control system with use-friendly touch screen.
3.Simple installation & start up operation.
4.Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5.Preforms are rotating in the heater to ensure being heated evenly.
6.Equipped with air cooling system ensure the bottle neck not deform.
7.Equipped with special designed air storage unit.
8.The machine surface is treated with baking varnish.
|
Model
|
SC-1000A Semi Automatic PET Bottle Blowing Machine
|
|
|
Theoretical output
|
800–1000 pcs/h
|
|
|
Finished bottle
|
Max. bottle volume
|
2L
|
|
Max. neck diameter
|
80mm
|
|
|
Max. bottle diameter
|
110mm
|
|
|
Max. bottle height
|
365mm
|
|
|
Mold specifications
|
Cavity
|
2 cavity
|
|
Mold thickness
|
110mm-230mm
|
|
|
Open stroke
|
180mm
|
|
|
Electrical system
|
Power voltage
|
380v/3Phase/50HZ
|
|
Installation power
|
14kw
|
|
|
Actual power consumption
|
5kw
|
|
|
Air source
|
Recommend air compressor
|
1.2m³/min 30Kg
|
|
Cooling water
|
Recommend water chiller
|
5HP
|
|
Blowing machine size
|
Length*width*height/weight
|
1630*620*1590mm/650kg
|
|
Heater size
|
Length*width*height/weight
|
1780*570*1380mm/350kg
|
AUXILIARY EQUIPMENT
1. Air Compressor : Compress air,used for blowing bottle and blower action. ( Pressure 3.0Mpa )

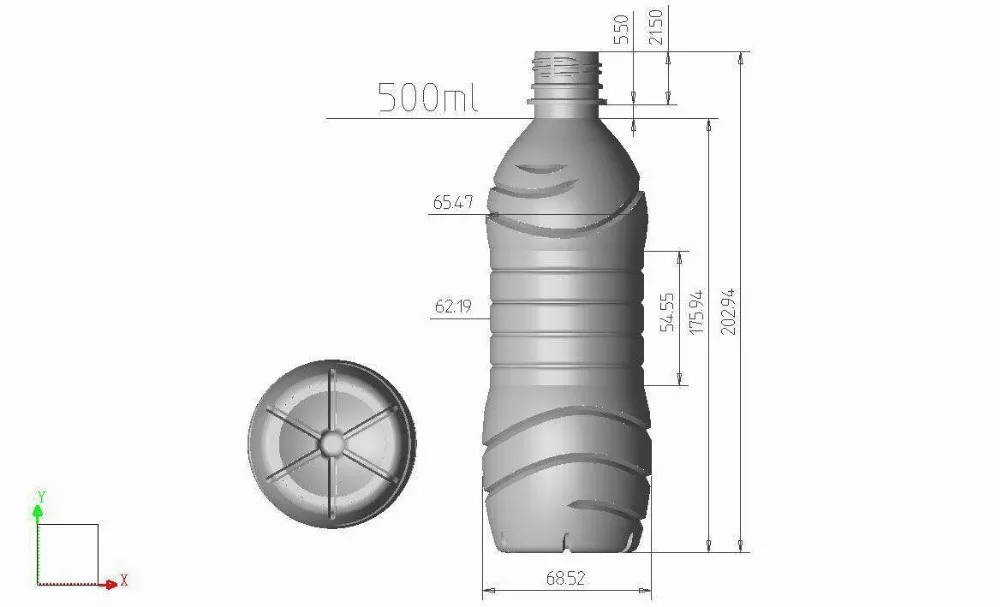

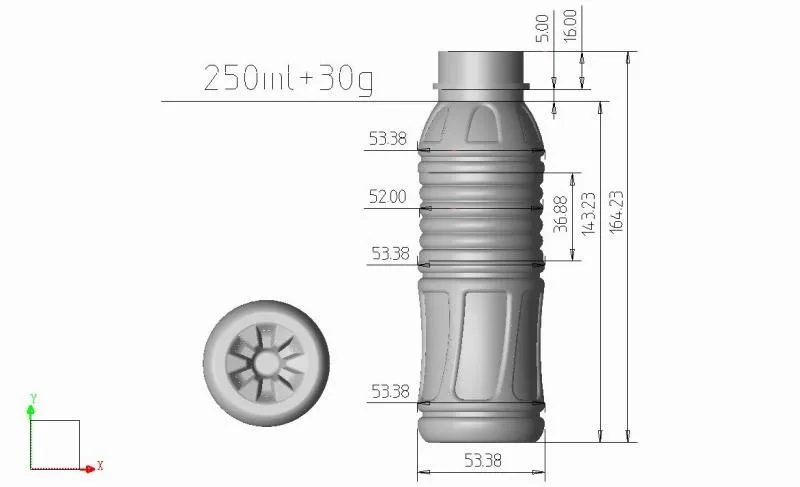

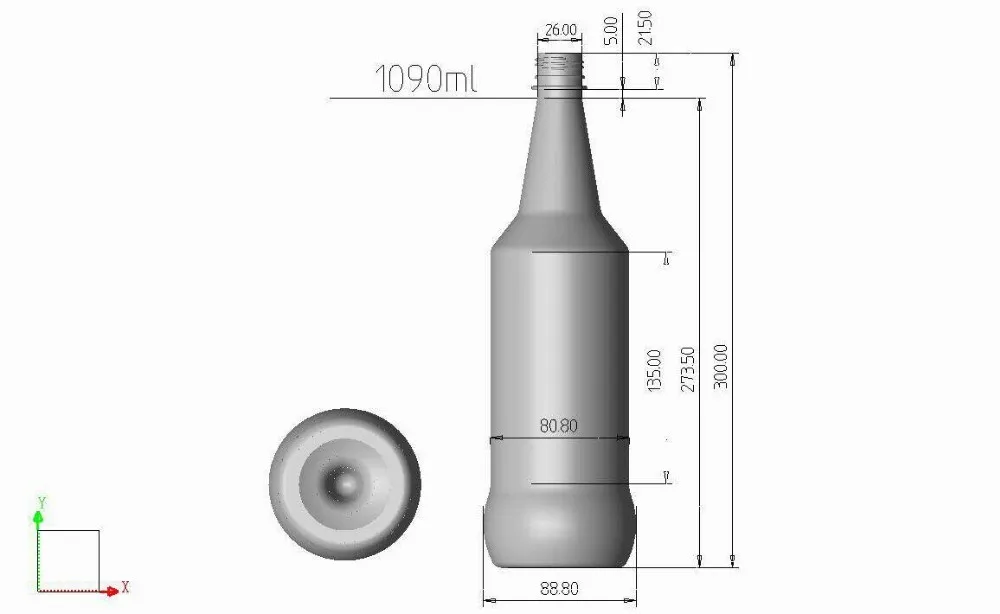

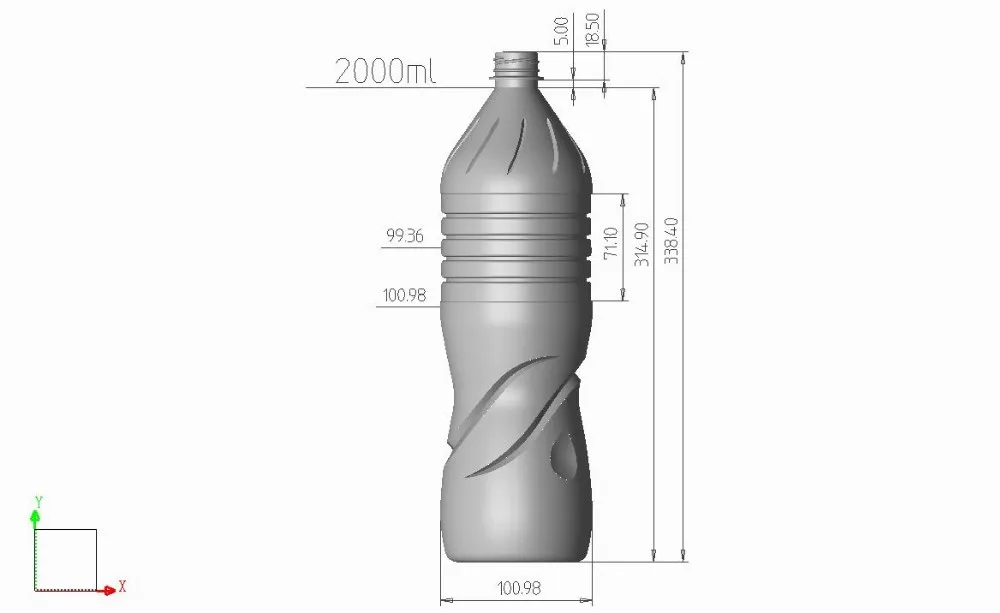

We offer free bottle design service,a good bottle make your product competitor.
- Category
- Industrial Equipment
- SKU
- Available on request
- Availability
- Please confirm with our team
Automatic PET Plastic Bottle Blowing Machine
₦12,000,000 – ₦12,500,000
Market estimate · not a selling price
Labelled comparable-market estimate in NGN; observed advertised prices, not an Apacino quote. HZ880 two-cavity semi-auto comparator 1000 bottles/hr; EnsureMachine ₦12.5m. Compressor/package confirm. Previous evidence. Supplier references checked 23 October 2026. Final pricing, taxes and delivery require confirmation.
Confirm current pricing and availability with our team.
